CA 1520
Richiedi Informazioni
Compila il form per avere tutte le risposte che stai cercando.
Argomento della richiesta:
/
| UNDERCARRIAGE | ||
|---|---|---|
| Overall Width | 2.000 - 2.400 mm | 6' 6" - 7' 10" |
| ENGINE | ||
|---|---|---|
| Engine Power | 160 kW | 214 HP |
| Emission standards | Stage 5/Tier 4f | Stage 5/Tier 4f |
| MAST | ||
|---|---|---|
| Retract force | 20.000 daN | 44,961 lbs |
| Feed force | 12.000 daN | 26,977 lbs |
| Feed stroke | 7.000 mm | 22' 11" |
| ROTARY HEAD | ||
|---|---|---|
| Torque range | 900 - 3.750 daNm | 6,638 - 27,659 lb*ft |
| Speed range | 27 - 140 rpm | 27 - 140 rpm |
| CLAMPS | ||
|---|---|---|
| Clamping range | 75 - 435 mm | 2" 15/16 - 1' 5" |
| WINCH | ||
|---|---|---|
| 1st line pull | 5.700 kg | 12,566 lbs |
| WEIGHT | ||
|---|---|---|
| Weight range | 19 - 20 t | 41,888 - 44,092 lbs |
| STANDARD EQUIPMENT | ||
|---|---|---|
| Rubber shoes for steel tracks | ||
| DC (Direct Circulation) kit | ||
| RC (Reverse Circulation) kit | ||
| Pipe loader arm | ||
| Mud line with 3” passage | ||
| Rod holder and combined breaker | ||
| Hydraulic rod centralizer | ||
| Welder unit/generator | ||
| Hydraulic winch | ||
| Reeving block for max retraction force at 3° layer | ||
| Water / foam pump | ||
| Water / mud pump | ||
| Hydraulic setting for booster pump | ||
| Hydraulic setting for vibrating sieve | ||
| Hydraulic setting for mixer | ||
| D.T.H. lubricator | ||
| Electro-hydraulic air gate valve | ||
| Work lights | ||
| Washing kit | ||
| Fuel filling pump Kit | ||
| ComNect system |
|
|

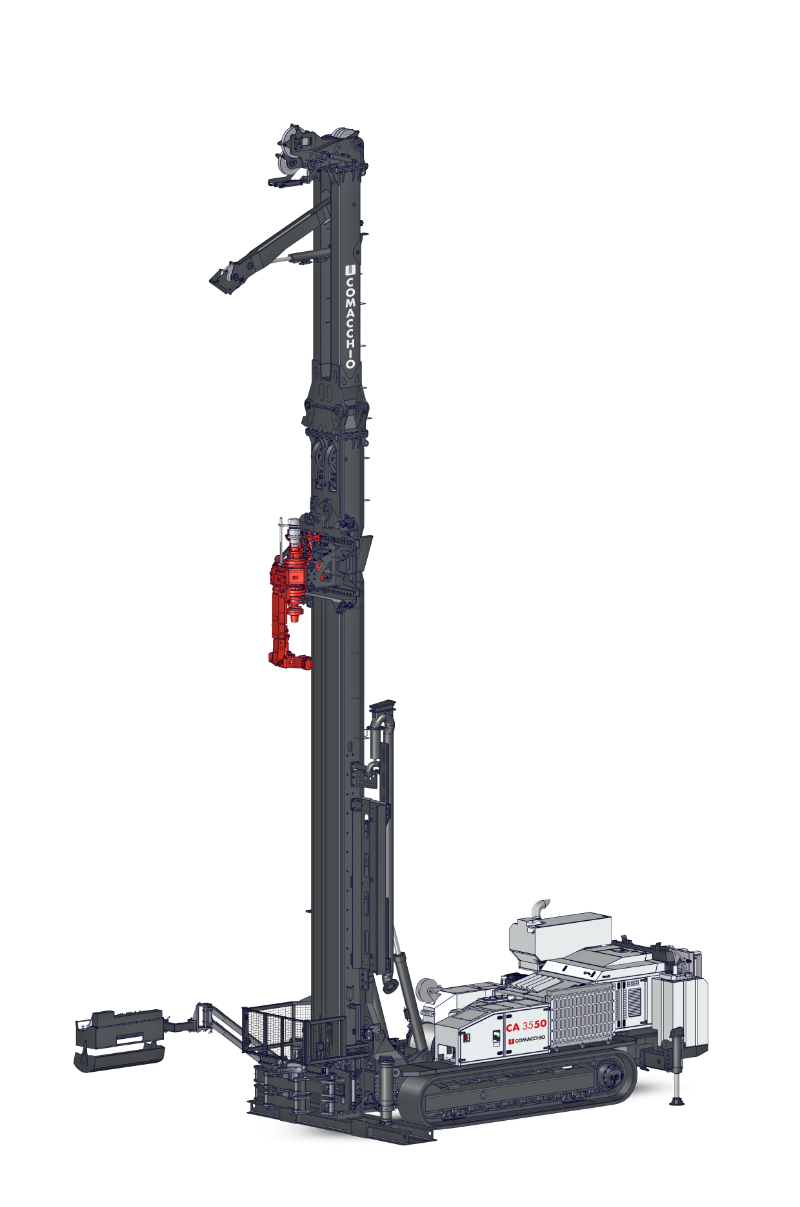

Scopri Gli altri modelli della linea CA
