MC 40

Richiedi Informazioni

Compila il form per avere tutte le risposte che stai cercando.

Argomento della richiesta:

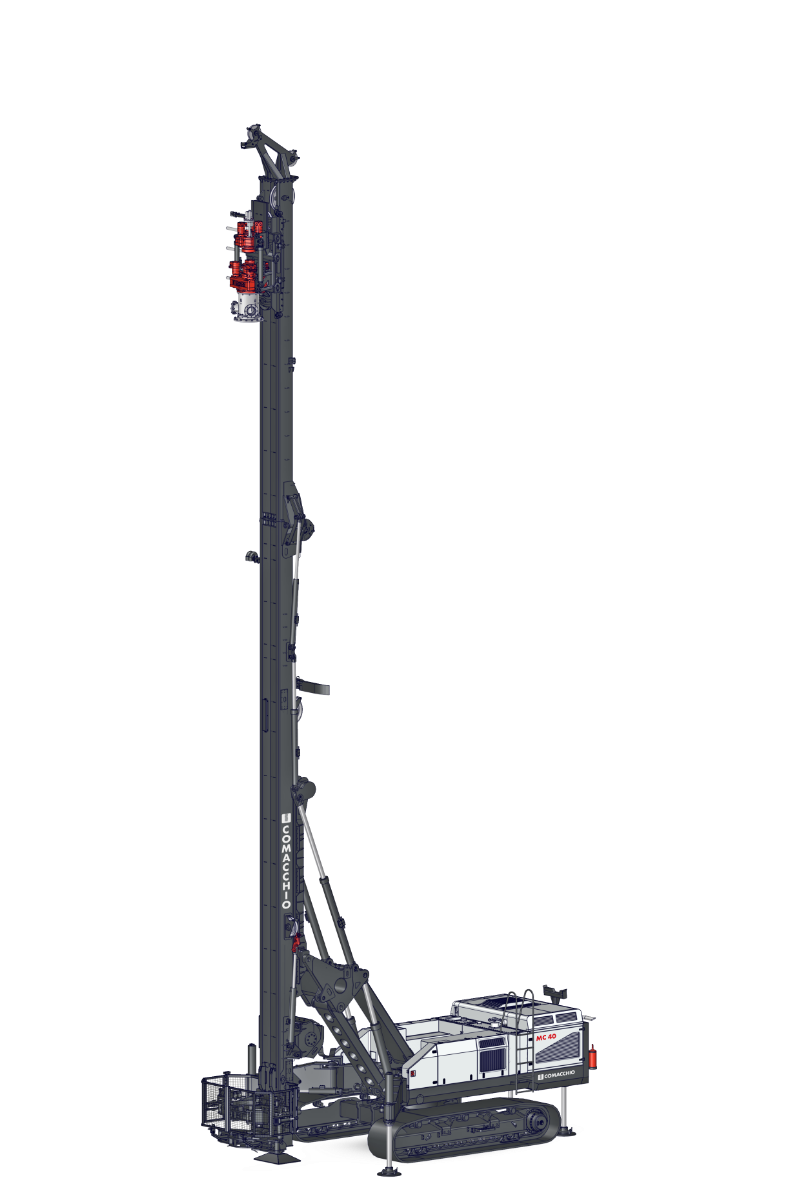

MC 40 render

/

UNDERCARRIAGE
Overall Width 2.500 - 4.000 mm 8' 2" - 13' 1"
ENGINE
Engine Power 205 - 225 kW 278 - 302 HP
Emission standards Stage 3A / Tier 3 - Stage 5/Tier 4f Stage 3A / Tier 3 - Stage 5/Tier 4f
MAST
Retract force 30.000 - 37.000 daN 67,443 - 83,179 lbs
Feed force 30.000 - 37.000 daN 67,443 - 83,179 lbs
Feed stroke 14.300 - 16.000 mm 46' 10" - 52' 5"
ROTARY HEAD
Torque range 3.750 - 10.000 daNm 27,659 - 73,756 lb*ft
Speed range 36 - 150 rpm 36 - 150 rpm
CLAMPS
Clamping range 76 - 620 mm 3" - 2'
CLAMP FOR CASINGS AND AUGERS
Max. rod size 850 mm 2' 9"
WEIGHT
Weight range 43 - 46 t 94,799 - 101,413 lbs
AUGER DRILLING SET-UP (CFA)
Auger diameter 400 -800 mm 1' 3" - 2' 7"
Feed stroke 16.000 mm 52' 5"
Extraction Force 30.000 daN 67,443 lbs
Max. Torque 10.000 daNm 73,756 lb*ft

STANDARD EQUIPMENT
Casing extractor
Hydraulic winch
Water / foam pump
D.T.H. lubricator
Electro-hydraulic air gate valve
Radio control
Fuel filling pump Kit
Washing kit
ComNect system
AUGER DRILLING SET-UP (CFA)
Concrete swivel kit 4”
Single clamp for casings and augers
Auger guiding device
CFA cleaner
Scarica il catalogo MC Line

VERTICAL MULTIPURPOSE DRILL RIGS

Guarda le altre macchine

MC 4

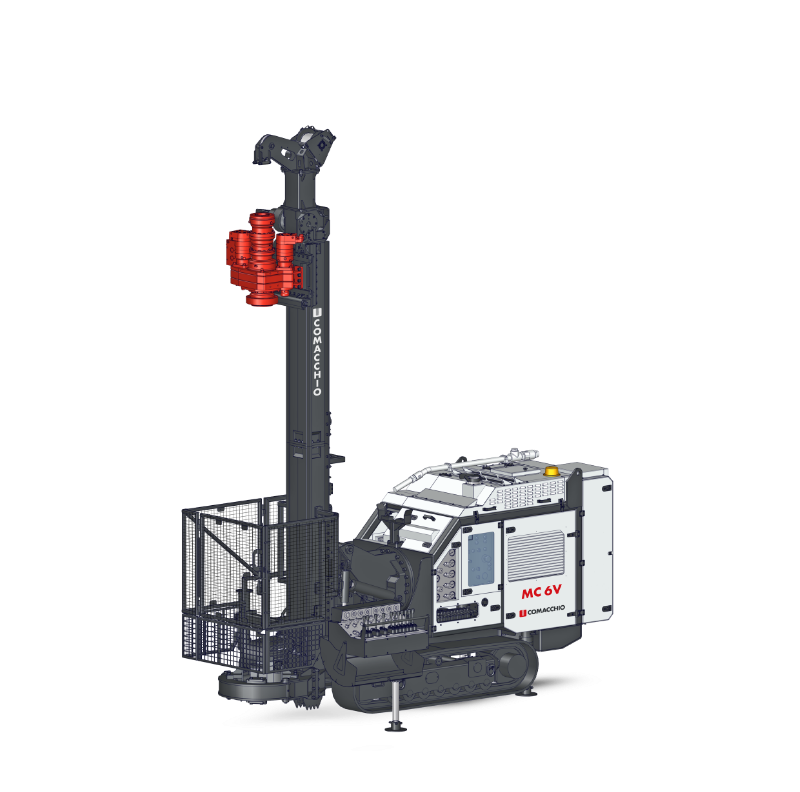

MC 6V

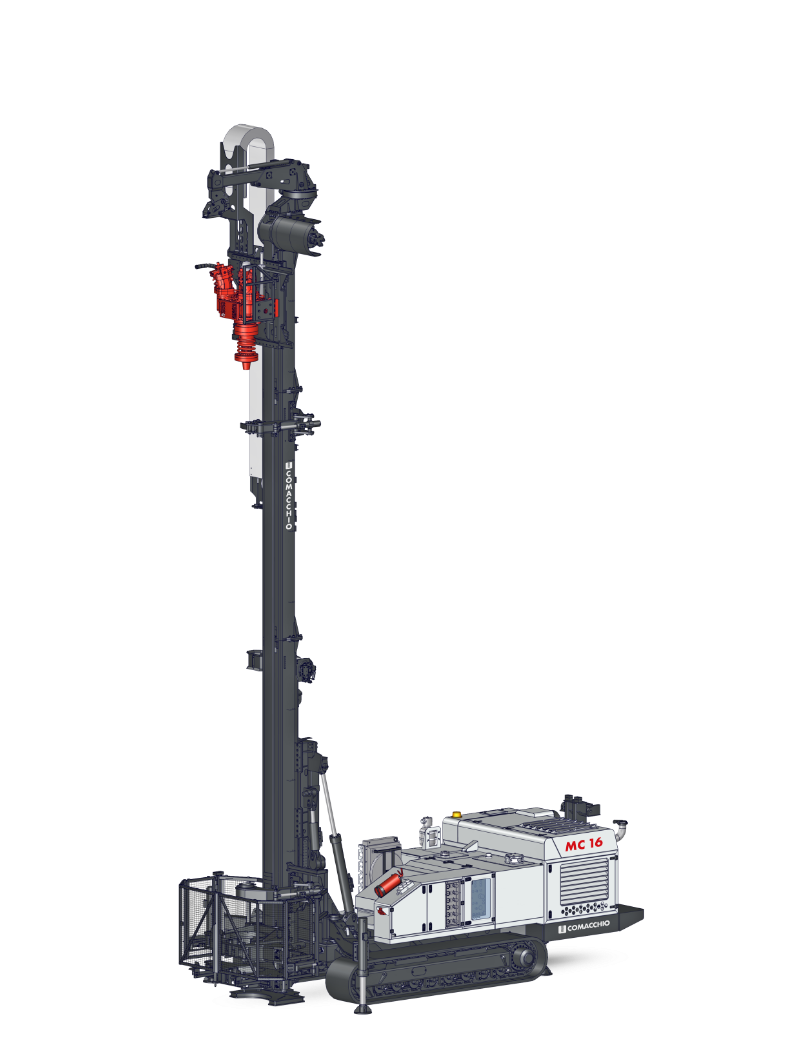

MC 16

MC 24

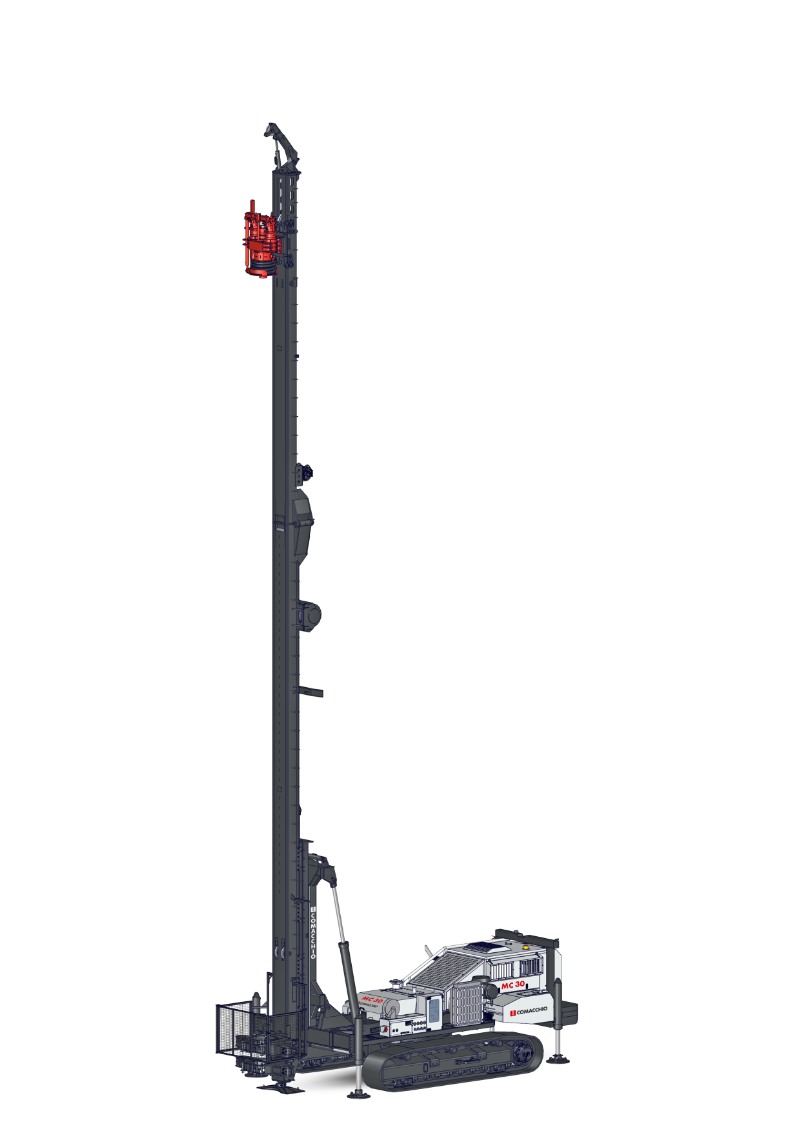

MC 30
